91L Underslung Fresh Water Tank Kit For Ducato, Boxer, Relay XLWB X250/X290 Campervan - White Filler

(THIS WILL NOT FIT 2.2L MODELS AFTER 2020)

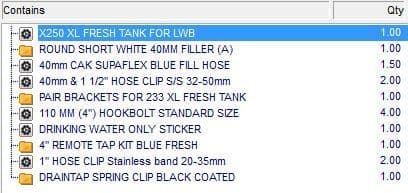

KIT CONTAINS:

• 1x CAK-233 91 Litre Underslung Water Tank with pre installed connections for Fresh Water
• 3x Mounting Brackets with hook bolts, nuts and locking nuts
• 1x 40mm Exterior Filler Neck Locking Cap + 2 Keys
• 2m 40mm supaflex filler hose with hose clips
• 1x Remote Drain Tap Kit (blue) with hose and hose clips
• White locking filler with cap and 2 keys

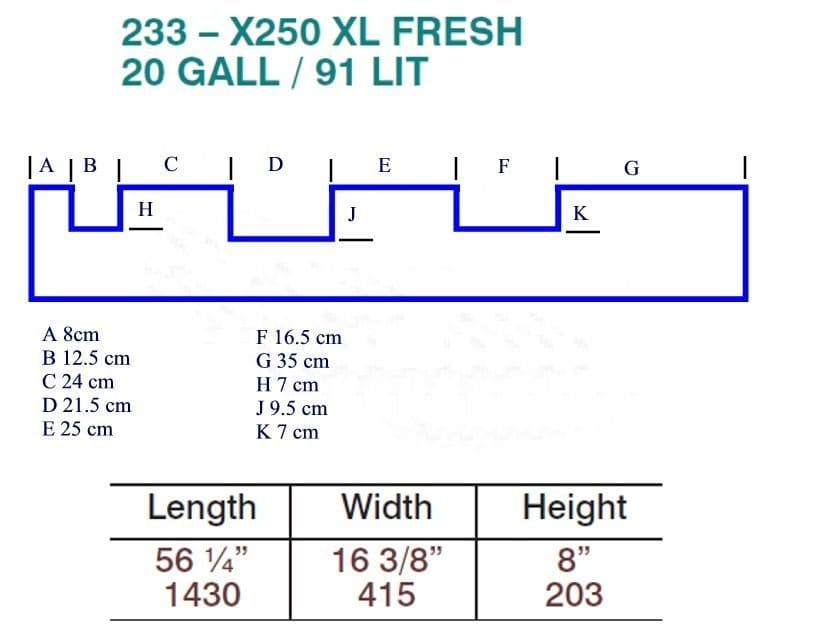

This underslung fresh tank is designed to fit centrally to right hand side between chassis and handbrake rod with a capacity of 91 litres. The tank comes with all the relevant inlets and outlets pre-welded onto the rear of the tank itself.

The tank is designed to tuck up between the recesses of the cross members.  This allows the base of the tank to be significantly above the lowest point of the vehicle to maintain good ground clearance.

The tank mounts to the cross members with the supplied brackets and hook bolts.  It does not require holes to be drilled into the chassis.

Pre-welded fittings include 1 x 40mm inlet, 1 x 25mm drain and 1 x 15mm pump outlet

Other options available:

• Black or grey filler
• Waste connections
• Pressure fill connections with pressure fill valve and mounting plate
• Level sensors
• Defrost elements
• Nut-in fitting set with hatch
