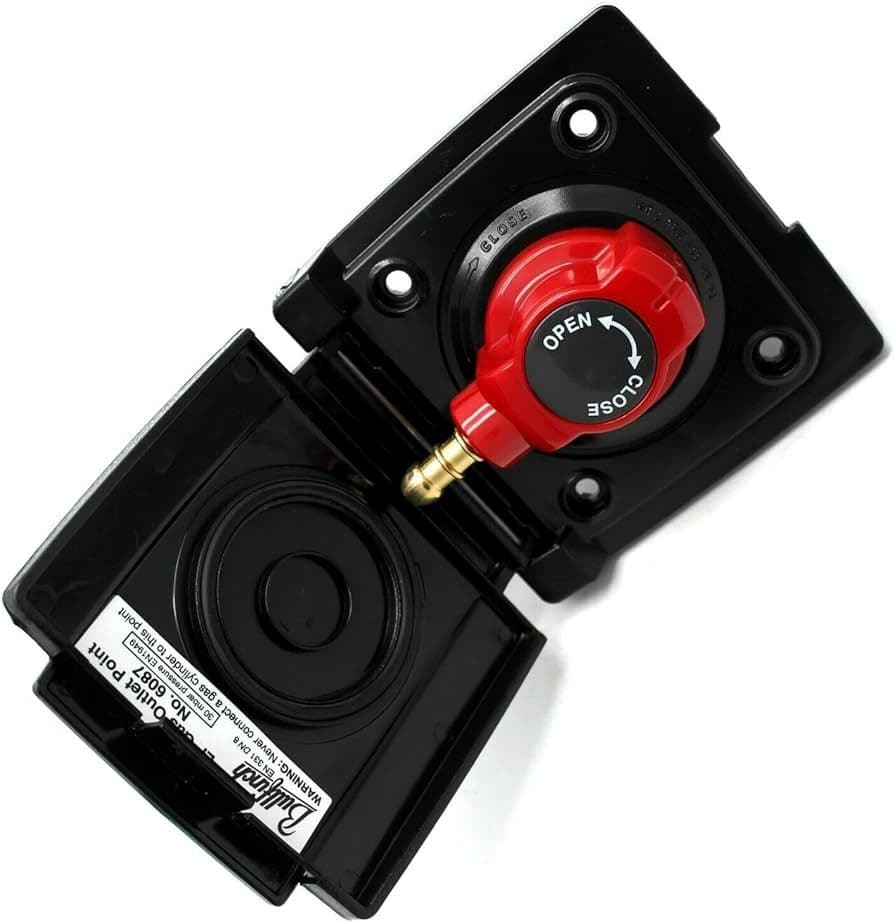

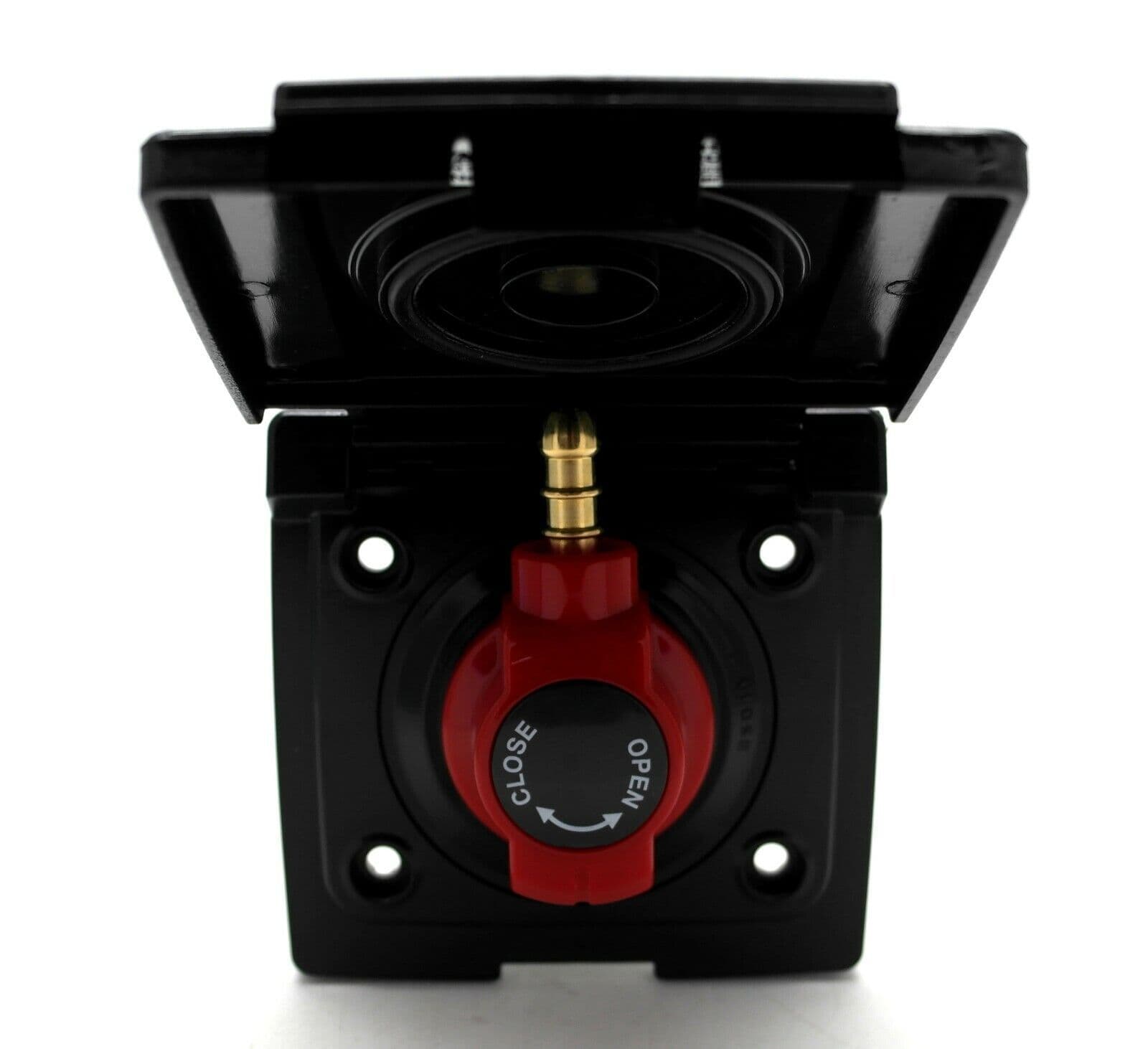

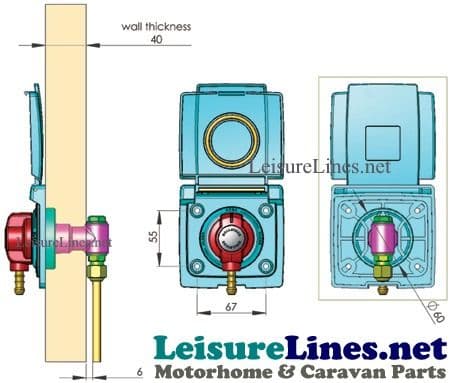

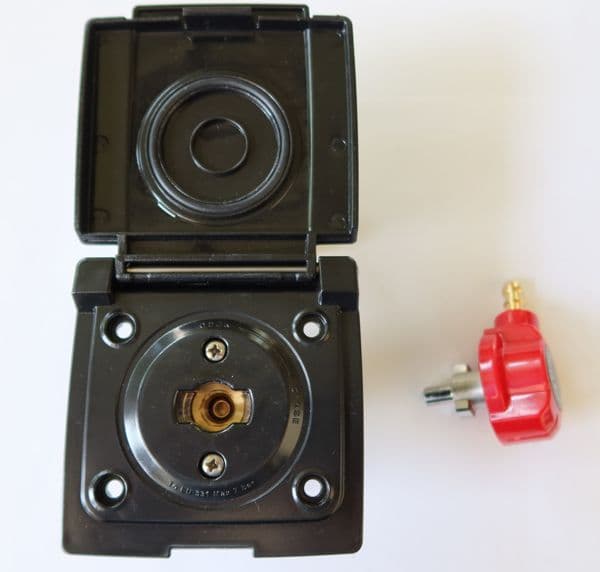

Home / Gas / External Gas Outlets Barbeque Motorhome and Caravan View more images Product Description Bullfinch Gas point (BBQ point) - Black - ideal for supplying barbecues, cooking appliances, patio heaters and other appliances for LPG (propane and butane) from the unit’s existing supply. Complete with Plug in tail connector and fixing screws. With the following features: complete with plug in tail connector and fixing screws good security - no connector, no flow push and turn activation innovative, attractive design high quality for a long reliable life compact lightweight easy to fit - requires 60mm cutter well styled high flow rate this version comes with angled inlet connector as shown The Gas point comes complete with a Plug in tail connector for connecting onto the hose from the appliance. Inserting the tail connector and turning, locks it in place and allows the gas to flow. The Gas Point comes complete with fitting instructions. It should be installed by a competent Gas Safe (was CORGI) registered installer. It is also supplied with 4 fixing screws. You will need a 60mm cutter to create orifice to fit the unit. The copper pipe for the gas inlet needs to be 8mm od. The hose for the Plug in tail connector needs to be 8mm bore LPG hose - our number GHP8. You will also need suitable hose clips HC6 Please note a gas cylinder should never be connected to the Gas point from the outside of the caravan or motor home. Technical Details Working pressure – 7 bar (max) Conforms to BS EN 331 Corrosion-resistant materials, LPG compatible Plastic parts made of high quality materials with long-term UV resistance Total sealing between device and wall of prefabricated structure Total sealing between cap and connection device Double gasket for optimal long-term safety Dimensions – 105 x 110 x 85 (deep) mm Weight – 440 gms Body - Hot forged brass alloy CW617 Ball valve + flare - Chrome/nickel plated brass alloy CW614 Additional brass parts - Brass alloy CW614 Plastic unit and cap - Polycarbonate reinforced with glass fibre Lever handle - ABS (Acrylonitrile Butadiene Styrene) – UV stable Hinges, springs and screws - stainless steel Rubber gaskets - NBR conforming to EN549 standard Wall gaskets and cap gaskets – UV, ozone resistant EPDM Ball valve seals: - PTFE Specifications Condition New Product Code GEXP6087K Weight 0.81kg Customer reviews No reviews left yet Write A Review Sort byMost RecentTop Rated Description Bullfinch Gas point (BBQ point) - Black - ideal for supplying barbecues, cooking appliances, patio heaters and other appliances for LPG (propane and butane) from the unit’s existing supply. Complete with Plug in tail connector and fixing screws. With the following features: complete with plug in tail connector and fixing screws good security - no connector, no flow push and turn activation innovative, attractive design high quality for a long reliable life compact lightweight easy to fit - requires 60mm cutter well styled high flow rate this version comes with angled inlet connector as shown The Gas point comes complete with a Plug in tail connector for connecting onto the hose from the appliance. Inserting the tail connector and turning, locks it in place and allows the gas to flow. The Gas Point comes complete with fitting instructions. It should be installed by a competent Gas Safe (was CORGI) registered installer. It is also supplied with 4 fixing screws. You will need a 60mm cutter to create orifice to fit the unit. The copper pipe for the gas inlet needs to be 8mm od. The hose for the Plug in tail connector needs to be 8mm bore LPG hose - our number GHP8. You will also need suitable hose clips HC6 Please note a gas cylinder should never be connected to the Gas point from the outside of the caravan or motor home. Technical Details Working pressure – 7 bar (max) Conforms to BS EN 331 Corrosion-resistant materials, LPG compatible Plastic parts made of high quality materials with long-term UV resistance Total sealing between device and wall of prefabricated structure Total sealing between cap and connection device Double gasket for optimal long-term safety Dimensions – 105 x 110 x 85 (deep) mm Weight – 440 gms Body - Hot forged brass alloy CW617 Ball valve + flare - Chrome/nickel plated brass alloy CW614 Additional brass parts - Brass alloy CW614 Plastic unit and cap - Polycarbonate reinforced with glass fibre Lever handle - ABS (Acrylonitrile Butadiene Styrene) – UV stable Hinges, springs and screws - stainless steel Rubber gaskets - NBR conforming to EN549 standard Wall gaskets and cap gaskets – UV, ozone resistant EPDM Ball valve seals: - PTFE Reviews No reviews left yet Write A Review Sort byMost RecentTop Rated Attributes Condition New Product Code GEXP6087K Weight 0.81kg Delivery & Returns Customer Reviews EXTERNAL GAS BBQ OUTLET POINT BLACK Product Code GEXP6087K GEXP6087K £46.32 Login to add this product to your wishlist.
