73 Litre Fresh Water Tank Kit for Vauxhall Movano

2010 – 2022 Renault Master 2010 - 2024 LWB with Grey Filler

Long Wheelbase Models Only - Grey Filler

(Does not fit RWD)

Fresh Tank - Fittings Pre-Welded - Brackets and fixings - Grey Filler

(Do not order the 73 litre waste tank to go with this as they fit in the same position on the vehicle.  Order CAK-035W-K2 instead).

KIT CONTAINS:-

• 1 x CAK-137FG-K2 Fresh Water Tank 73 Litre with pre welded fittings (1 x 40mm inlet, 1 x 15mm pump outlet, 1 x 25mm drain)
• 1 x set of custom made steel brackets. (Recommend painting with metal paint prior to installation)
• 2 x 3” hookbolts with locking nuts
• 2 x 4” hookbolts with locking nuts
• 40mm blue Supaflex hose x 1.5m with hose clips
• 25mm blue supaflex hose x 1m with hose clips and spring clip
• Blue drain tap
• Grey locking filler cap with 2 keys

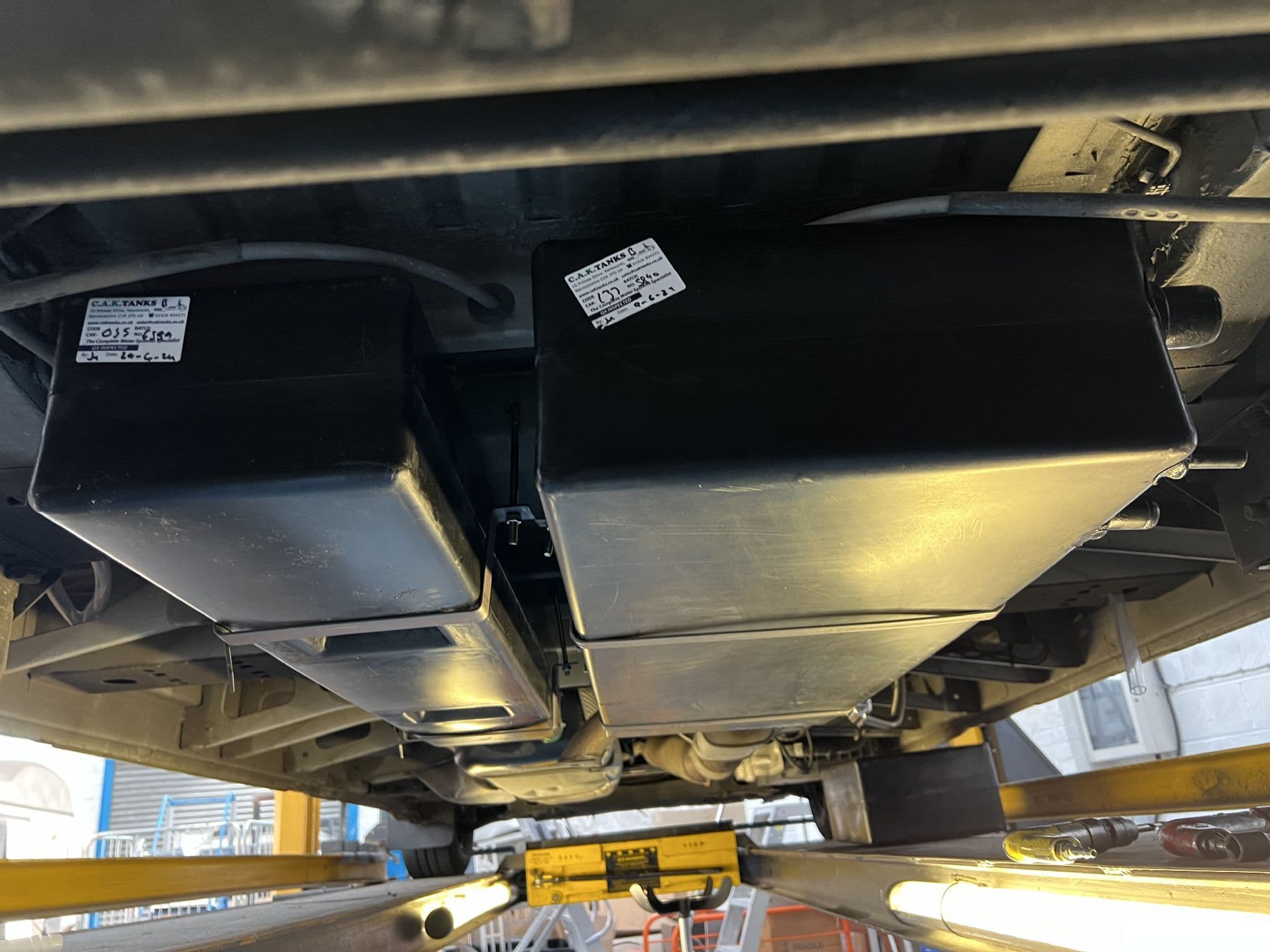

This fresh tank is designed to fit on the driver’s side, centrally, inboard of the chassis.  Capacity of 73 litres.

Fixing kit supplied with 2 brackets, 2 x 4 inch hookbolts and 2 x 3 inch hookbolts all with locking nuts.

The driver side of both brackets require the 3 inch hookbolts and the opposite side of both brackets require the 4 inch hookbolts.

Both centre side hookbolts hook into pre-existing large holes in the chassis member for the handbrake cable.

Both driver/chassis side hookbolts hook into the upper slotted circle holes in angled face of cross member.

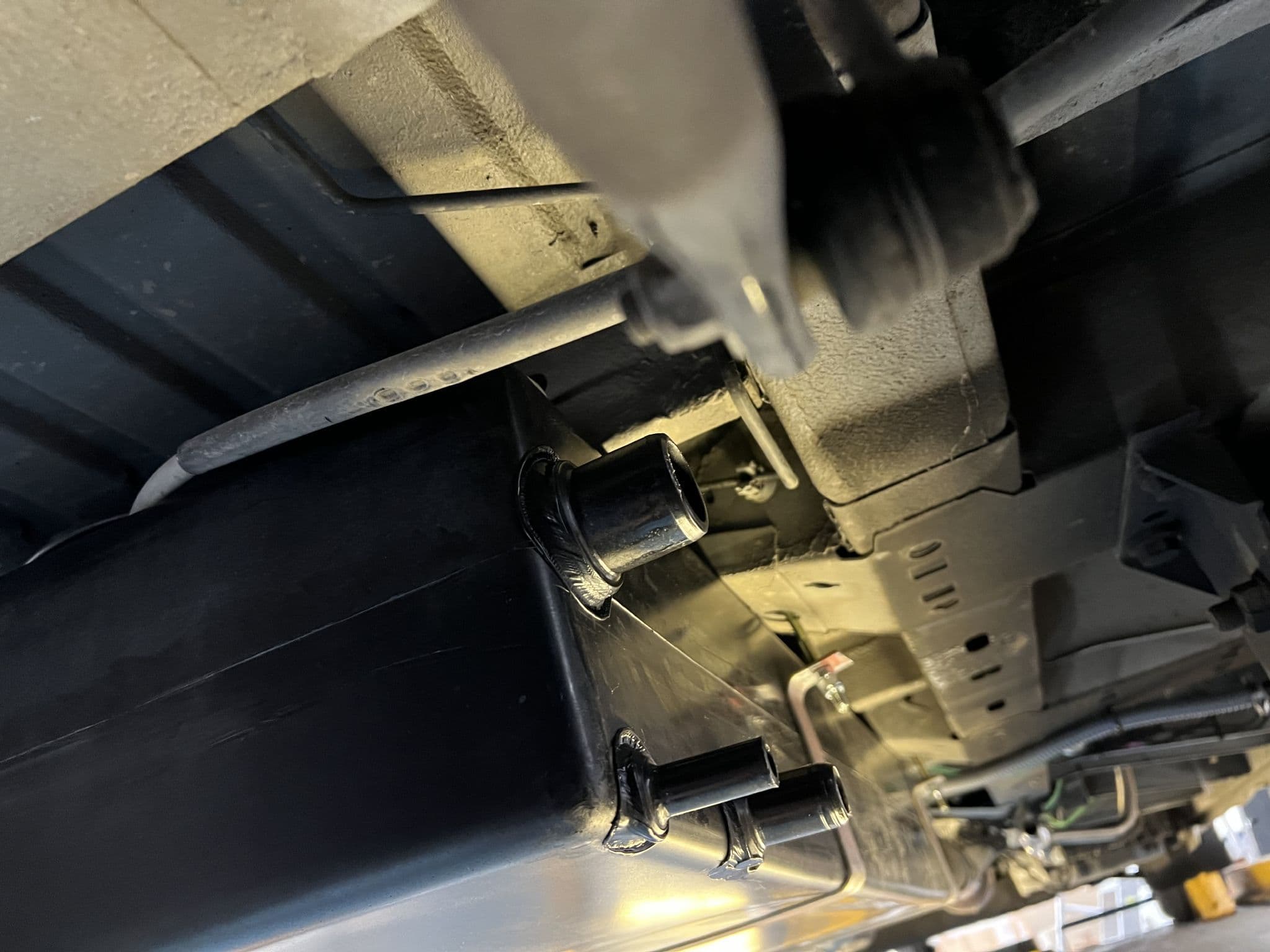

All connections are welded onto the driver side face of the tank towards the rear.  Three welded fittings included:  1 x 40mm inlet, 1 x 15mm pump outlet and 1 x 25mm drain.

Recommend the use of smooth bore supaflex hose which is ultra flexible.

This tank can also be used for fresh pressure fill (back fill) or for waste.  See separate listing.

OPTIONALS:-

- 1x Fresh Water Level Gauge with Read out Panel (MTT/G)

- Defrost element (DFE-02)
