20 Litre Underslung Waste Water Tank Kit for Renault Trafic 2014 Onwards SWB LWB Campervan
Fits standard and long wheel base – Waste Water Tank
This tank is designed to fit on the passenger side of the vehicle, in front of the main suspension mount, next to the fuel tank, directly under the sliding door. It is not possible to have an electric step with this tank.
Fixing kit supplied with 2 steel brackets, 2 x 3 inch hookbolts, 2 x 8 inch hookbolts and locking nuts.
The two brackets supplied are different from each other. The bracket that fits to the rear of the tank is the wide bracket and the front bracket is the narrow bracket.
Both fixings on the sill side of the tank use the two 3 inch hookbolts. These hook into pre-existing holes in the inner sill. Remove the oval plug and hook in the hookbolt. The plug can be replaced if it is notched slightly to fit over the hookbolt.
The fixings on the chassis side require the 8 inch hookbolts. These fit into pre-existing holes in the chassis.
Pre-welded fittings included: 1 x 25mm drain and 1 x ¾ inch waste inlet both positioned on front face of tank.

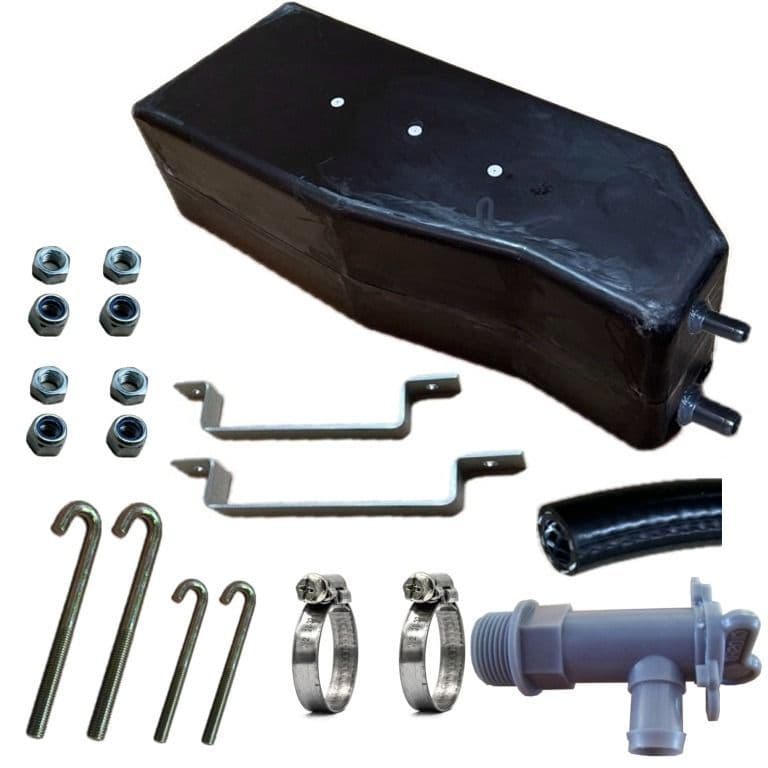

Kit includes:
- 1 x pair steel holding brackets with hookbolts and locking nuts
- Grey drain tap with hose and hose clips
Also fits:
- Vauxhall Opal Vivaro – 2014-2018
- Nissan NV300 - 2014-2018
- Nissan Primastart 2022 onwards
- Fiat Talento - 2016-2020
Also available as a fresh pressure fill or internal fill option. See separate listings.
